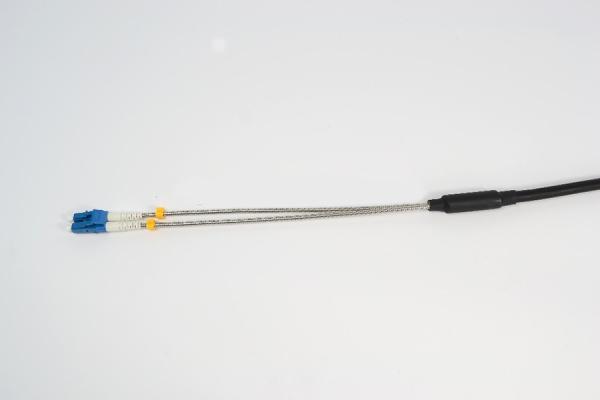

CPRI fiber optic LC arourmed outdoor patch cable
Application:
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS,
CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to
link the base station with the remote unit at the antenna mast.
Automation and industrial cabling
ODC provides highest reliability and operating safety. The
ruggedized design provides highest mechanical and thermal
robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
Surveillance systems
Security camera manufacturers choose ODC connectors for its compact
size and robust design. ODC assemblies are easy to install even in
areas difficult to access and provide highest installation safety.
Naval and ship building
The high corrosion resistance convinced both naval and civil ship
builders to use ODC assemblies for on-board communication systems.
The nickel plated connectors withstand humid and salty environments
and guarantee life times of 20 years and beyond.
Broadcast
offers a range of mobile cabling systems and ODC assemblies for
temporary cable installations
required for the broadcasting of sport events, car racing, etc.and
for temporary connections in case of natural hazards.
Key Features
1 Robust fiber-optic connector for 2 and 4 channels with screwed
mating mechanism
2 IP68 protection, salt-mist proof, and EMI protection
3 High shock, vibration, and mechanical resistance
4 Broad temperature range and wide range of indoor and outdoor
cables
5 Easy, reliable and cost-effective installation
Optical performance
1. Insertion loss / IEC 61300-3-34
2. singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3. multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d
4. Return loss / IEC 61300-3-6 singlemode ≥ 50 dB
