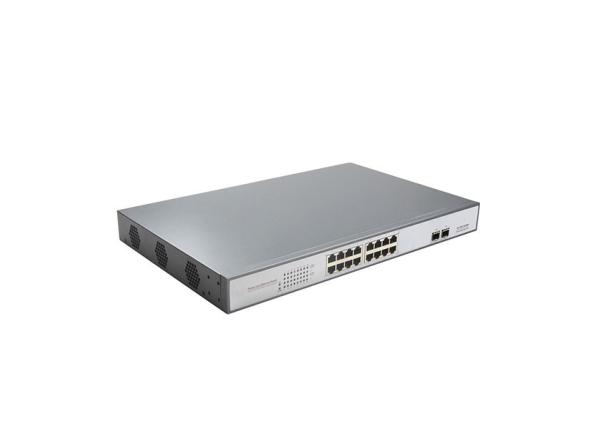

    Lightweight Small POE Switch 2*1000Mbps SFP Optical Fiber Ports 16*10/100Mbps RJ45 Ports

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-PE-GSF2DT16-I
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5
    Price : Negotiable
    • Product Details
    • Company Profile

    Lightweight Small POE Switch 2*1000Mbps SFP Optical Fiber Ports 16*10/100Mbps RJ45 Ports

    OFS-PE-GSF2DT16-I

    16ports 100M PSE + 2ports 1000M SFP Fiber


    Description:

    OFS-PE-GSF2DT16-I Optical Ethernet switch with 2*1000Mbps SFP Optical fiber ports and 16*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

    OFS-PE-GSF2DT16-I’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP phone, wireless AP and other PoE supported devices.. Power input also chooses industry-standard types of power.


    Technical Specifications

    Product Name16-port 10/100Mbps + 2-port 1000Mbps SFP Fiber
    Product ModelOFS-GSF2DT16-I
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
    Network Media

    10BASE-T: Cat3,4,5 UTP(≤100 meter)

    100BASE-TX: Cat5 or later UTP(≤100 meter)

    Fiber Media

    Multi-mode: 2KM

    Single-mode: 20/40/60/80KM

    Performance SpecificationBandwidth:7.2Gbps
    Packet Buffer Memory:2M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table:1K /port

    PoE Specification


    PoE Standard: IEEE802.3af/ IEEE802.3at
    PoE ports:16 port support PoE

    Power Output:

    Max. 15.4 watts (IEEE 802.3af)

    Max. 30 watts (IEEE 802.3at)

    PoE port Auto detect AF/AT devices
    Output Voltage: DC48V
    Power Pin Assignment:4/5+;7/8-
    Power Type: End-span( Mid-span optional)
    Forwarding ModeStore-and-Forward
    LED IndicatorsPower: PWR; Link;POE ; Link/Act
    Power SupplyInput Voltage: AC100~250V

    Feature:

    • 16 Port 10/100Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
    • 16 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
    • Automatic MAC address learning and aging
    • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
    • LED indicators for monitoring power/link/activity
    • Supports10/100Mbps-Full/Half-duplex
    • Supports Wall-mount and DIN-Rail installation
    • Supports Broadcast Storm Control
    • Supports Relay output for power failure
    • Excellent heat elimination without cooling fan.
    • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
    • Harsh environment or higher requirement
    • -10℃-55℃operating temperature range.
