Field Fast connector
Factory Outlet Price FTTH SC UPC Optical Fiber Fast Connector
Description:
The Fast Connector (Field Assembly Connector or Field terminated fiber connector,
quickly assembly Fiber connector) is a revolutionary field
installable optical fiber connector that requires no epoxy and no
polishing, this connector during the installation process does not

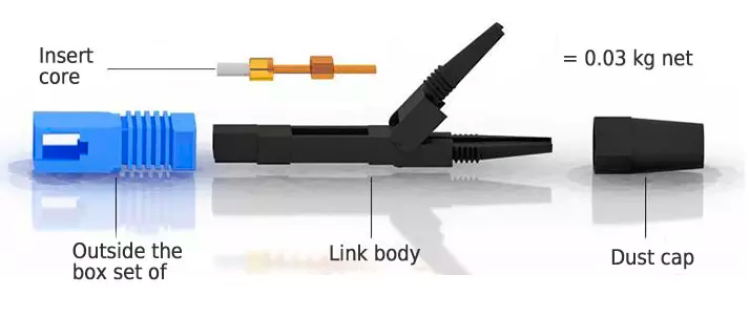

require any adhesive and curing process. The unique design of the
patented mechanical splice body incorporates a factory-mounted
fiber stub and a pre-polished ceramic ferrule, They are widely used
in FTTx, Connecting up Renovation of Computer/controlling Room
applications.
Pls Note: Choose type in accordance with connecting head of optical movable
connector. According to the structural form of connecting head. It
can be divided into FC,FC,ST,LC,MTRJ,MPO,MU,SMA,DDI,DIN4,D4,E2000
various types. The excelent strength and stability(200-600gt
insertion and extraction force)can be got by good sintered
technology.
Characteristics:
1). With pre-polished fiber
2). Field installable, cost effective, user friendly
3). No electricity required
4). Less than 1 min, Field assembly time
5). Reliable and superior optical performance
6). Cable tensile test complianted with Telcordia GR-326-CORE
Application:
CATV
Telecom network
Optical test equipment
Local area networks
Wide area networks
Data processing Networks
Specifications:
| Available connector type | LC,SC,FC,ST,MTRJ |
| Boot type | 0.9mm/2.0mm/3.0mm fiber cable |
| Fiber Type | Singlemode, Multimode |
| Insertion loss (db) | <= 0.3 db (typical) |
| Return loss(db) | >= 50db |
| Polishing type | UPC and APC |
| Reusable Times | >10 times |
| Connection Method | Push - on |
| Storage/Operating Temperature | -40°C to + 85°C |
Detailed Image
