Brand Name : | OPTFOCUS |
Model Number : | LC |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 5 |
Price : | Negotiable |

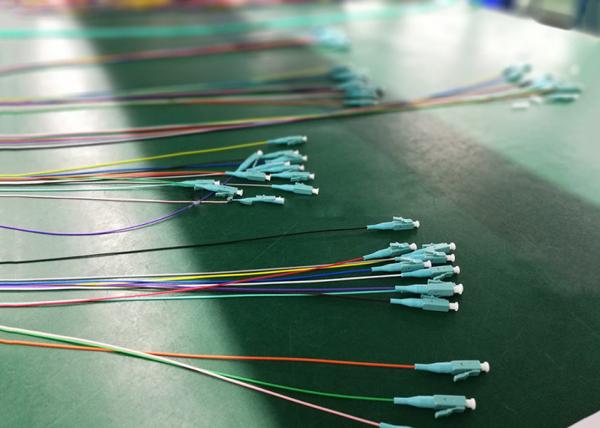

Fiber optic 12core ribbon colorful pigtail OM3 LC aqua connector
Product Description
Features
1. Price-Competitive
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options: G.652 /G.657/OM1/OM2/OM3/OM4
5. Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6. Polishing Options: PC/UPC/APC
7. Feature Connector with Ceramic Ferrules
Applications
1. Access Network
2. Telecom/CATV Systems
3. FTTx
Specifications
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) TIA/EIA-455-107 | ≤ 0.2dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC) |
Return Loss(dB) TIA/EIA-455-107 | ≥55dB(PC/UPC) ≥65dB(APC) | ≥35dB(PC/UPC) |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag |
![]() |
