PORTS | 16*GPON interface, SC single-mode/single-fibre,1.25Gbps; 4*10/100/1000Mbps RJ45 4*SFP+ |
Wavelength | Tx 1310nm, Rx 1490nm |
Farthest distance | 20km between OLT and ONU |
Standard | IEEE802.3ah IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad, LACP Ethernet – II, Ethernet-SNAP IEEE 802.3ad VLAN Stacking( Q in Q) |
VLNA | 4K VLAN table items VLAN based on port, MAC, protocol and IP subnet. port QinQ and flexible QinQ (StackVLAN) VLAN Swap and VLAN Remark GVRP t the addition, deletion and replacement of VLAN based on ONU business flow. |
Management maintenance | Support for command line interface (CLI), Console port, Telnet and WEB configuration management. IGMPv1/v2/v3.STP/RSTP/MSTP.ACL. QoS.SNMPv1/v2/v3
|
power supply | AC:90~260V,47~63Hz DC:-36V~-72V ;Optional dual power supply |
Power consumption | ≤25W |
Operating condition | Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed) |
Storing condition | Storing temp: -30~+60℃,Storing humidity:10~90%(non-condensed) |

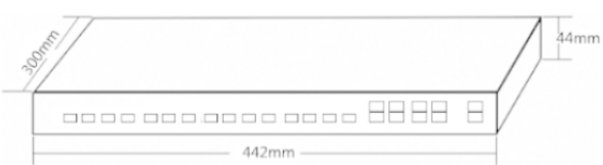

Dimension | 442mm*300mm*44mm(length*width*height) |
Net weight | 1.84Kg |
Feature:
lPlug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
lChina Telecom / China Unicom GGPON interoperability standards
lSupport for the transmission distance of 20Km on a single root
fiber
lSupporting 64 terminals of passive optical splitter on single
optical fiber
lSupport 128Bits up and down three churning encryption functions
lSupport ONU terminal legitimacy authentication, illegal ONU
registration events reported
lDBA algorithm supporting dynamic bandwidth allocation, granularity
64Kbit/s
lSupport standard OAM and extended OAM management functions
lSupport ONU software batch upgrade, timing upgrade, real-time
upgrade support PON port luminous power, accept optical power
detection
lSupport for command line interface (CLI), Console port, Telnet and
WEB configuration management.
lSupport EAPS and GERP enhanced Ethernet ring network protocol (loop
healing time <50ms) support.
Physical Pic Reference :
Application
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date
of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low
cutoff 10V.
4. Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server
for details.
5. Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported.
The network management type we produce can support this function.
