OFS-MGSF1DT8
8-port 10/100Mbps + 1-port 1000Mbps SFP Fiber Switch
Description:
OFS-MGSF1DT8 is a managed Layer 2 + Optical Ethernet switch with
1*1000Mbps Optical ports and 8*10/100Mbps RJ45 ports. It is
designed to meet the various application needs, and provide an
Ethernet network communication solution with a high
performance-price ratio. OFS-MGSF1DT8's high availability and
reliability, as well as the rich security features, makes it ideal
for secure data transmission. It also features powerful Web-based.
"OP Ring Protection"(OPRP) , designed specifically for
applications, to provide a fast Ethernet ring protection and
recovery within 15ms. From the management console, uses can choose
any port (normal Ethernet port or trunk port) to form an Ethernet
ring for faster recovery and wider bandwidth.
Technical Specifications
Product Name | 8-port 10/100Mbps + 1-port 1000Mbps SFP Fiber |
Product Model | OFS-MGSF1DT8 |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i
10Base-T;IEEE802.3u;100Base-TX;IEEE802.3ab 100Base-T; IEEE802.3z
1000Base-X; IEEE802.3x; 802.1Q VLAN Tag 802.3ad LACP 802.1D-2004 STP 802.1w Rapid STP 802.1s Multiple STP |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
Performance Specification | Bandwidth:6Gbps
Packet Buffer Memory:2M
Packet Forwarding Rate:148800pps/port
MAC Address Table:4K |
Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR; FX Link/Act;100(1-8) ; Link/Act(1-8) |
Power Supply | Input: AC100 ~ 250V, Output:DC5V 2A. |
Max power | 5W |
Environment temperature | 0 ~ +55℃ |
Feature:
8 Port 10/100Mbps with Auto Uplink™ , 1 port 1000Mbps SFP Fiber
Web-based network management interface
support Port-based VLAN, IEEE 802.1Q VLAN, simple network planning
OP Ring Protection (OPRP), Spanning Tree Protocol (STP) and Rapid
Spanning Tree Protocol (RSTP) for Ethernet ring protection and
quick recovery
Automatic MAC address learning and aging
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe
City.
Harsh environment or higher requirement
-10℃-55℃operating temperature range.

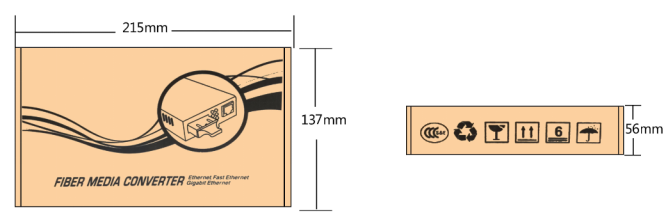

Chassis Dimension:
Application
