Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports

Product Categories

Shenzhen Optfocus Technology Co., Ltd.

Contact Now

Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports

Ask Lasest Price
Brand Name :	OPTFOCUS
Model Number :	OFS-MGSF2T8
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	5

Add to Cart

Product Details
Company Profile

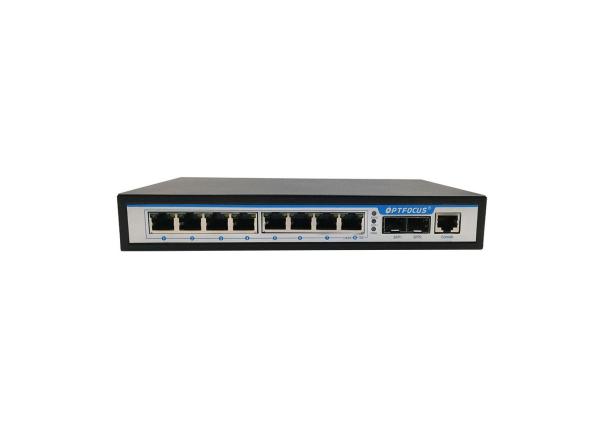

Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports

OFS-MGSF2T8

8ports 10/100/1000M + 2ports 1000M SFP Fiber Switch

Description:

OFS-MGSF2T8 is a managed Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical ports and 8*10/100/1000Mbps RJ45 ports. Fiber Optic Switch is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio. OFS-MGSF2T8’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. Fiber Optic Switch also features powerful Web-based.

"OP Ring Protection"(OPRP) , designed specifically for applications, to provide a fast Ethernet ring protection and recovery within 15ms. From the management console, uses can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.

Technical Specifications

Product Name	8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model	OFS-MGSF2T8
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; 802.1Q VLAN Tag 802.3ad LACP 802.1D-2004 STP 802.1w Rapid STP 802.1s Multiple STP
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 550M-2KM Single-mode: 20/40/60/80/100KM
Performance Specification	Bandwidth:20Gbps Packet Buffer Memory:2M Packet Forwarding Rate:1488000pps/port MAC Address Table:4K
Forwarding Mode	Store-and-Forward
LED Indicators	Power: PWR; FX Link/Act;1000(1-8) ; Link/Act(1-8)
Power Supply	Input: AC100 ～ 250V, Output:DC15V 2A.
Max power	5W

Feature:

8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Fiber
Web-based network management interface
support Port-based VLAN, IEEE 802.1Q VLAN, simple network planning
OP Ring Protection (OPRP), Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery
Automatic MAC address learning and aging
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100/1000Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh environment or higher requirement
-10℃-55℃operating temperature range.
The built-in 12V lead acid battery charging circuit

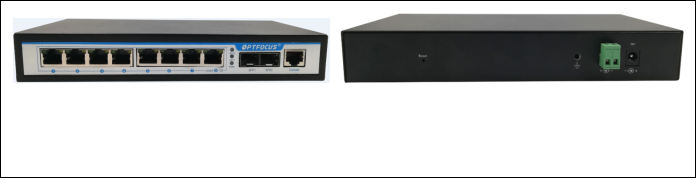

Physical Pic Reference :

Chassis Dimension:

Package Dimension:

Ordering Information:

model	Product description
OFS-MGSF2T8	8* 10/100/1000Base-T RJ45,2* 1000M fiber SFP ports, without SFP module,WEB,external PS.
