OFS-GSF2T2
2ports 10/100/1000M + 2ports 1000M SFP Fiber Switch
Feature:
2 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
Automatic MAC address learning and aging
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100/1000Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe
City.
Harsh environment or higher requirement
-10℃-55℃operating temperature range.
Description:
OFS-GSF2T2 series is a Layer 2 + Optical Ethernet switch with
2*1000Mbps SFP Optical fiber ports and 2*10/100/1000Mbps RJ45
ports. It is designed to meet the various application needs, and
provide an Ethernet network communication solution with a high
performance-price ratio.
OFS-GSF2T2's high availability and reliability, as well as the rich
security features, makes it ideal for secure data transmission.for
connecting with devices like computer, switch, hub, server, etc.
Technical Specifications
Product Name | 2-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber |
Product Model | OFS-GSF2T2 |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i
100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X; IEEE802.3x; |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Fiber Media | Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100KM |
Performance Specification | Bandwidth: 8Gbps
Packet Forwarding Rate:1488000pps/port
MAC Address Table:1K |
Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-2); TP Link/Act(1-2) |
Power Supply | Adapter: Input: AC100 ~ 250V, Output:DC5V 2A. |
Max power | 5W |
Environment temperature | 0 ~ +55℃ |
Storage temperature | -20 ~ +70℃ |
Humidity | 5% ~ 90% |
Physical Pic Reference :

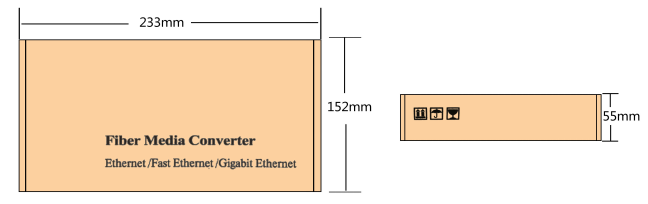

Chassis Dimension:
Application
