High Quality Epon onu Very Low Price Compatible Bdcom Fiberhome ZTE
1.25G Epon Gpon Onu
Product Description
OFSX611 XPON(GPON and EPON dual mode) ONU. It is designed for
meeting the triple-play service needs of fixed network operators or
cable operators, and widely used in FTTx, video surveillance and
other requirements. It is based on mature GPON and EPON technology,
and has high ratio of performance to price, stable, cost-effective,
high reliability, easy management, configuration flexibility and
good quality of service (QoS) guarantees.
| Tech parameters | description |
Up-link interface | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate
and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU
authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |

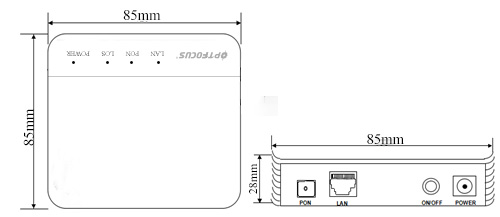

| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.24Kg(mainframe) |
Definition of indicator LED
| symbol | color | meaning |
| PWR | green | ON:successfully connect with power OFF:fail to connect with power |
| PON | green | ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
| LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down
faulty |
| LOS | red | Flicker: fail to connect with PON port OFF: detected fiber to input |
Features
- Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
- Completely compatible with GPON international standard
IEEE802.3ah/802.3-2005
- Support China Telecom GPON CTC3.1 standard and expand OAM
- Support DBA reporting mechanism request
- Support OAM (Link, Test, Loop back)maintenance function defined
IEEE802.3ah
- Support to save configured parameters if power down
- Support to configure the work mode at the user port
- Support MDI-MDIX automatic-detection at the user port.
- Support access authentication based on serial number
- Support access authentication based on MAC address
- Support 802.1Q VLAN
- Support traffic rule to modify the related priority.
- Support to restore the factory settings
- Support the remote reset and reboot
- Support dying gasp outage alarm
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Physical Pic Reference
Application
Package Infor
Payment
Certifications
Company Profile
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009,
which is a High -tech manufacturer enterprise with 10 years’
experience in global sales and services.
Our company focus on professional R & D, production and sales of
XPON access equipments, FTTH/FTTx solution and passive cabling
system products. We also committed to provide Customized OEM & ODM
services to Global communication distributors, Telecom Operators
and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and
owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win
more market and customers!
Customer Said
Exhibitions
OPTFOCUS Technology take part in Exhibition at least twice each
year which were held all over the world.
